Flexible and mobile thanks to Luzio lighting
Are you looking for a powerful, compact lighting system that can be easily transported and installed anywhere? We developed the LUZ:IO system for this purpose and deliberately designed it to be flexible. You have the choice between three different models:
- LUZ:IO S (18.000 lm lm, 3.000 K / 5.000 K, 750 m2)
- LUZ:IO M (36.000 lm, 3.000 K / 5.000 K, 1.500 m2)
- LUZ:IO L (72.000 lm, 3.000 K / 5.000 K, 3.500 m2)
The M and S models are available with different input voltages (DC 12-24V or AC 120/230V), the dS version is even dimmable.
Quality-tested, durable lighting systems
Like all our Lumoons, the Luzio lighting is developed and manufactured in Germany. The flexible balloon lighting system is characterised by its excellent serviceability. It is suitable for continuous use as indoor or outdoor lighting and withstands even the most adverse thermal and mechanical conditions.
With Luzio lighting, you are purchasing the next generation of light. In order to ensure the consistent quality of our products, we carry out continuous quality checks within the production process. Of course, the attribute "made in Germany" also stands for a long service life as well as simple and safe handling..
Flexible lighting technology for a wide range of applications
Our flexible Luzio lighting is absolutely weatherproof. It can be used both indoors and outdoors. Whether in production halls, on construction sites or in the open air, whether in rescue services, at events or on film sets: with the balloon lighting system from Lumoon Group GmbH in Isernhagen you are perfectly equipped everywhere.
When you buy or rent a lighting system from us, you have the choice between different tripods. Depending on the intended use, these can be adapted to your individual needs. Call us or use our contact form for your enquiry - we will also be happy to advise you personally!

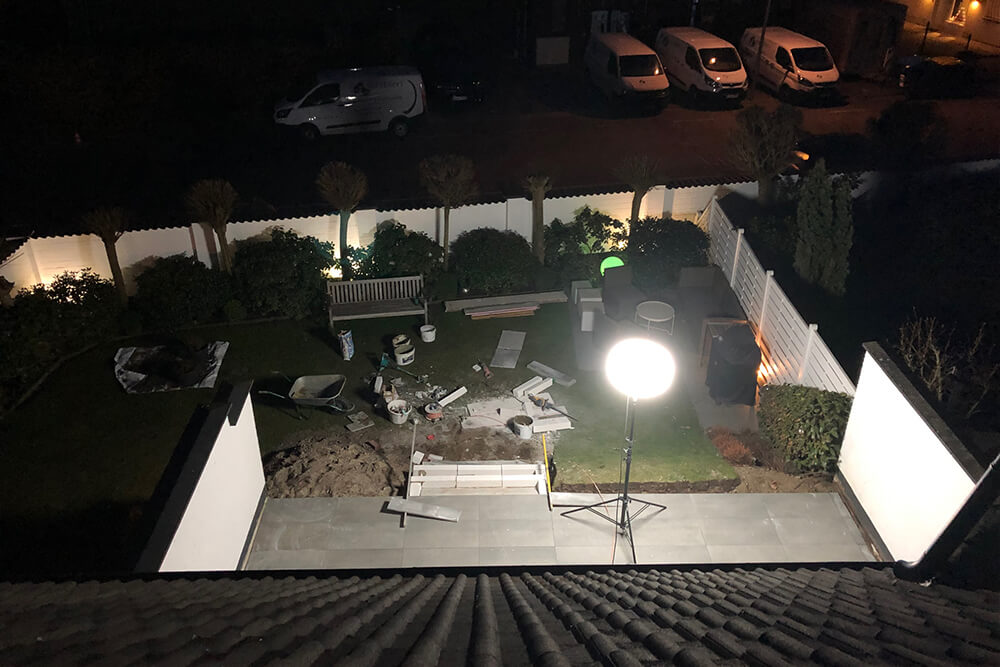

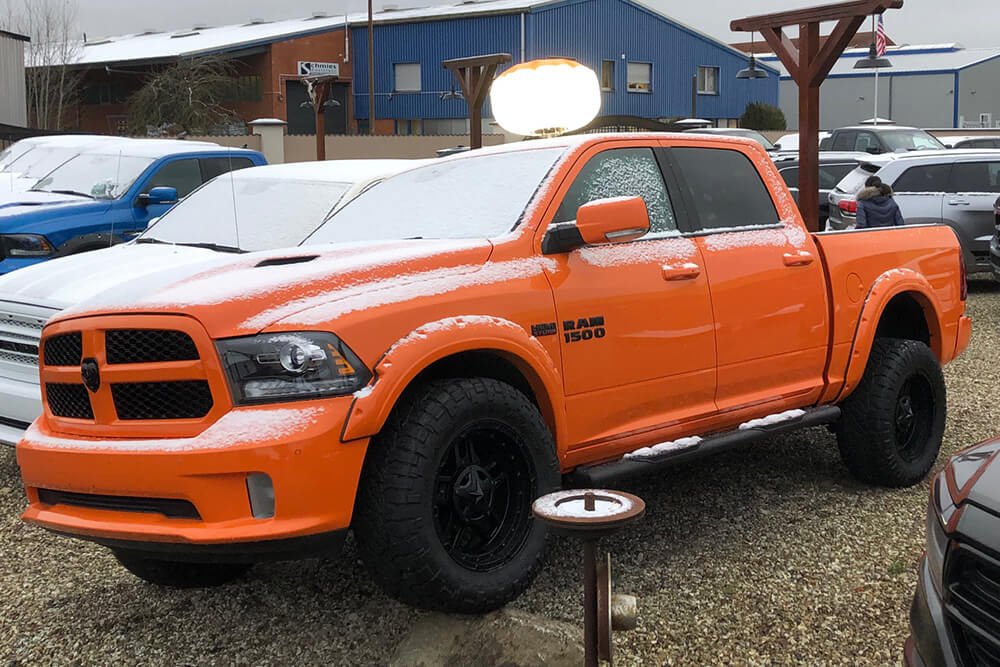

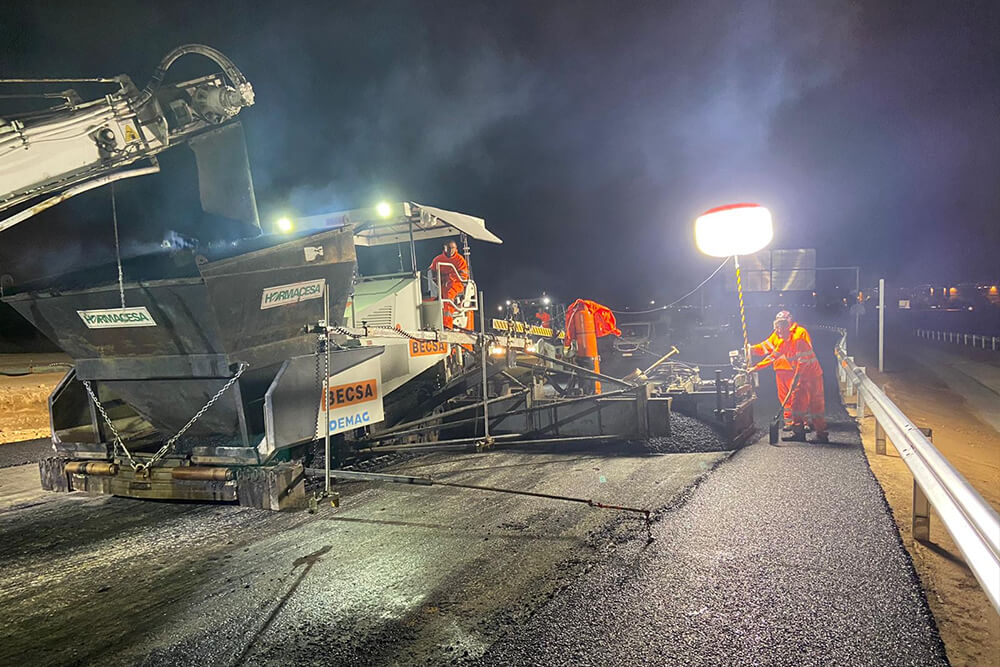

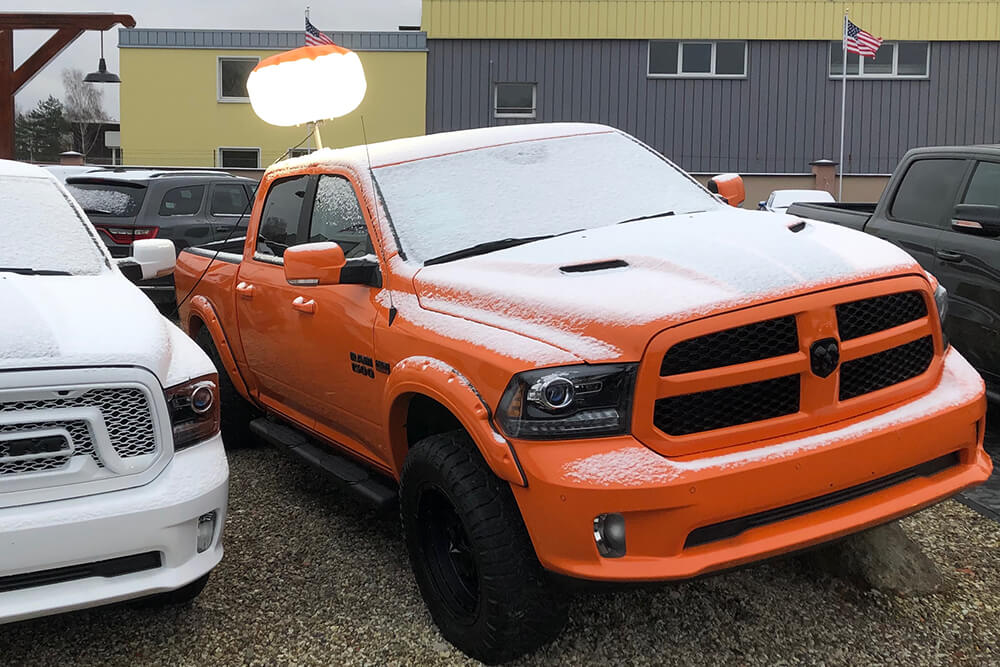

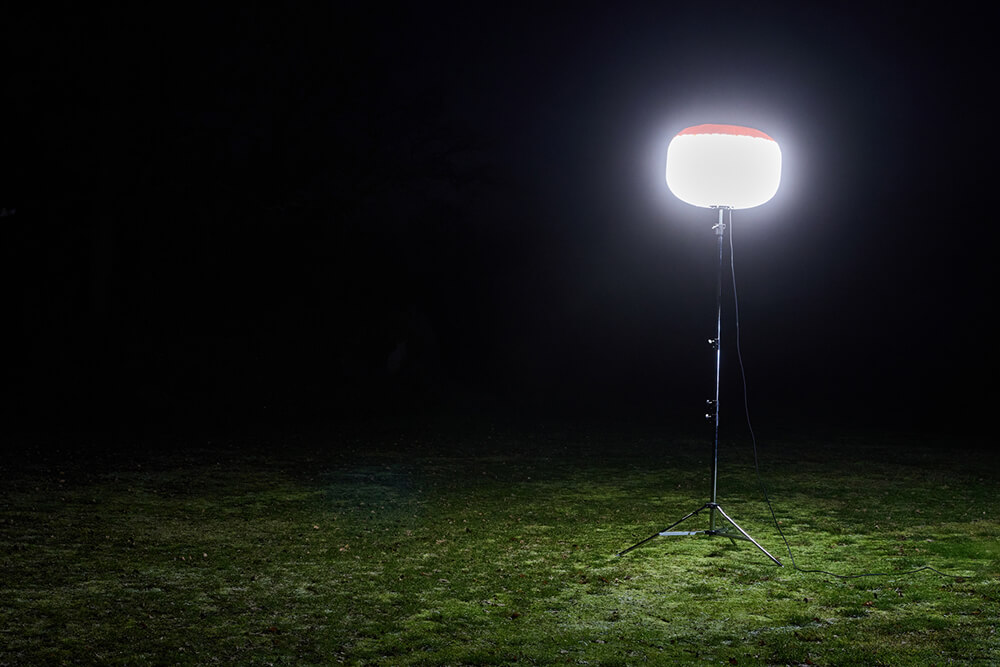

LUZ:IO in Action Application examples of our LUZ:IO
Choose your LUZ:IO
LUZ:IO S
Mobile and flexible. High performance in a compact form. Ideal for indoors and outdoors.
- 18.000 lm
- 5.000 K
- 750 m2
- 12-24VDC / 120-230VAC
LUZ:IO M
Mobile and flexible. High performance in an ultra compact form. Ideal for indoors and outdoors.
- 36.000 lm
- 5.000 K
- 1.500 m2
- 24VDC / 120-230VAC
LUZ:IO L
Mobile and flexible. High performance in an ultra compact form. Ideal for indoors and outdoors. Dimmable!
- 72.000 lm
- 5.000 K
- 3.500 m2
- 230V (dimmable)
LUZ:IO S - Technical data
| Model | LUC:IO S DC | LUZ:IO S AC |
|---|---|---|
| Light source | LED | LED |
| Luminous flux | 18.000 lm | 18.000 lm |
| Power consumption | 4,8A @ 24Vdc | 0,5A @ 230Vac |
| Input voltage | 12-24V DC | 120/230V AC |
| Luminous efficacy | 160 lm/W | 160 lm/W |
| Available light colours | 5000K (further on request) | 5000K (further on request) |
| Switch-on time | immediately | immediately |
| ø service life LED | 50.000 h | 50.000 h |
| Protection class | IP 54 | IP 54 |
| Remote control | no | no |
| Connector standard | Car plug (~ISO 4165) (further on request) | Type F (Schuko) (further on request) |
| Net weight | 2,8 kg | 3,0 kg |
| Envelope dimensions (on the job) | D: 650 mm H: 400 mm | D: 650 mm H: 400 mm |
| Illuminated area | 750 m2 | 750 m2 |
| Max. luminous intensity under light balloon | 150 lx @ 2m | 150 lx @ 2m |
You can download the data sheet with the technical data here.
LUZ:IO M - Technical data
| Model | LUC:IO M DC | LUZ:IO M AC |
|---|---|---|
| Light source | LED | LED |
| Luminous flux | 36.000 lm | 36.000 lm |
| Power consumption | 9,6A @ 24Vdc | 1,0A @ 230Vac |
| Input voltage | 24V DC | 120/230V AC |
| Luminous efficacy | 160 lm/W | 160 lm/W |
| Available light colours | 5000K (further on request) | 5000K (further on request) |
| Switch-on time | immediately | immediately |
| ø service life LED | 50.000 h | 50.000 h |
| Protection class | IP 54 | IP 54 |
| Remote control | no | no |
| Connector standard | 24V-Plug (further on request) | Type F (Schuko) (further on request) |
| Net weight | 3,2 kg | 3,4 kg |
| Envelope dimensions (on the job) | D: 650 mm H: 400 mm | D: 650 mm H: 400 mm |
| Illuminated area | 1500 m2 | 1500 m2 |
| Max. luminous intensity under light balloon | 250 lx @ 2m | 250 lx @ 2m |
You can download the data sheet with the technical data here.
LUZ:IO L - Technical data
| Model | LUC:IO L | LUZ:IO L Univ. |
|---|---|---|
| Light source | LED | LED |
| Luminous flux | 72.000 lm | 72.000 lm |
| Power consumption | 2,0A @ 230Vac | 4,0A @ 120Vac |
| Input voltage | 230V AC | 110-230V AC |
| Luminous efficacy | 160 lm/W | 160 lm/W |
| Available light colours | 5000K (further on request) | 5000K (further on request) |
| Switch-on time | immediately | immediately |
| ø service life LED | 50.000 h | 50.000 h |
| Protection class | IP 54 | IP 54 |
| Remote control | yes | yes |
| Connector standard | Type F (Schuko) (further on request) | Type F (Schuko) (further on request) |
| Net weight | 6,9 kg | 7,0 kg |
| Envelope dimensions (on the job) | D: 950 mm H: 700 mm | D: 950 mm H: 700 mm |
| Illuminated area | 3500 m2 | 3500 m2 |
| Max. luminous intensity under light balloon | 350 lx @ 5m | 350 lx @ 5m |
You can download the data sheet with the technical data here.
